HIGH PRESSURE FOGGING SYSTEM
HIGH PRESSURE FOGGING SYSTEM
The ideal living environments of living things deteriorate in conditions of extreme heat or cold, extreme or low humidity. By controlling humidity in greenhouses, an ideal environment for evaporation transpiration and photosynthesis, which is very important for plant cultivation, can be created. With the right humidification systems in greenhouses, better quality plants, faster harvest and less insects and less disease problems occur.
As a result of the evaporation of billions of water drops sprayed from the fogging nozzles by absorbing the heat of the air, the temperature is lowered and the relative humidity is increased. The resulting cool and rainy air is used to provide the desired climatic conditions in the greenhouse with circulation fans, ventilation and control systems. Thus, adverse weather conditions are minimized for the plants that can be grown in the greenhouse. Due to the working environment and favorable conditions for plant growth with increasing temperature, wastage rates decrease and productivity increases.
The required values for the fogging system are as follows:
- Water hardness <5 Fr., Ph: 7
- Water supply pressure: 4-6 bar
- Nozzle spacing 1.5 m

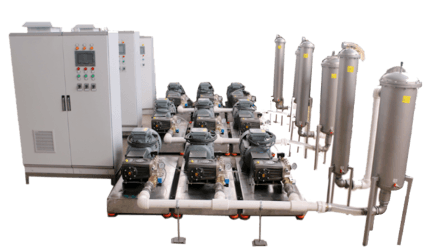

Control and Pump Unit System Components:
- High pressure pump 150 bar
- Electric motor 380V 50Hz.
- High pressure sensor
- Manometer 0-160 bar
- Inlet water control valve
- Low pressure switch
- Inverter
- 5-15 micron sediment filter
Outlines And System Components:
- Main lines 22 mm 304 quality stainless pipe & SS 316 press fittings
- Nozzle pipes 12mm 304 quality stainless pipe & SS 316 press fittings
- Welded nozzle body
- Nozzles
